Screencast MCP

Quick start

You need Windows 10 or 11, Node.js 22+, and ffmpeg on PATH (winget install Gyan.FFmpeg). Capture is Windows-only; the watch, edit, and produce tools work anywhere ffmpeg runs.

Add it to your client:

Client	How
Claude Code	claude mcp add screencast -- cmd /c npx -y @tmhs/screencast-mcp
Claude Desktop	Download the .mcpb from the latest release and open it (one click)
Cursor, VS Code, others	The JSON config below, or step-by-step on Connect your client

{
  "mcpServers": {
    "screencast": { "command": "npx", "args": ["-y", "@tmhs/screencast-mcp"] }
  }
}

Then ask your agent:

Record my VS Code window for five seconds while I reproduce the bug, then show me the frames where something changed.

More in the workflows: a bug-repro GIF for a PR, a README demo, a UI verification loop, a social clip, a cheap review of a long recording, zoom toward clicks, and the whole edit in one call.

Overview

Screencast MCP gives an agent a screen recorder it can drive and reason about. It speaks Model Context Protocol over stdio and exposes ffmpeg as a small, typed tool surface rather than a flag soup. The defining capability is the watch loop: an agent records footage, samples it into PNG frames, and views those frames to confirm what actually happened on screen.

The design choices are deliberate rather than incidental:

• Capture is always explicit. A recording or screenshot happens only on a tool call — nothing auto-fires and there is no background or scheduled capture.
• Footage is made viewable. sample_frames turns a video into images returned straight to the model, so "watch what happened" is a first-class operation, not an afterthought.
• Presets over raw flags. Quality is draft / standard / high; the agent never reasons about codecs, CRF, or pixel formats.
• Safe by default. Output lands under SCREENCAST_HOME, never inside a project checkout, and the public repo's .gitignore blocks captured media from being committed.
• Recordings end. When the client disconnects (or the server gets SIGINT/SIGTERM), every active recording is finalized and the server exits. Every recording also has a maxDurationSec cap (default one hour). A recording interrupted by a hard crash is reconciled on the next start (orphan reaping).

What it can do beyond record-and-look:

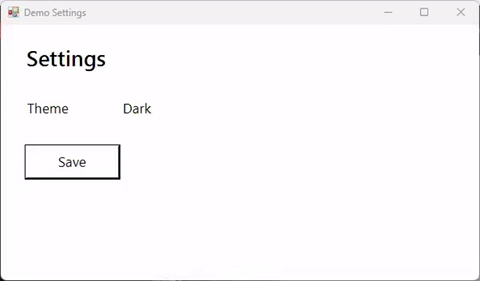

• Zoom toward clicks. Record with events: true and zoom glides in on each click and rings it, Screen Studio style.
• Review before sharing. In clients with MCP Apps, stop_recording opens an inline player where a person trims and draws redaction boxes.
• Find and cover secrets. find_text reads the screen with Windows OCR and returns rectangles for redact_region.
• One call, one encode. pipeline runs trim, crop, redact, callouts, and an export as a single ffmpeg pass.
• Record a covered window. backend: "wgc" records a window's own surface through Windows Graphics Capture.

Tools

41 tools in six groups. The manifest in mcp-tools.json is the canonical surface; tests keep it, this README, and the docs site in sync with src/tools/.

Capture

Tool	Purpose
start_recording	Start a background recording. target = full | monitor:<index> | window:<title> | region:<x>,<y>,<w>,<h>; optional fps, quality, audio (set audio.source = system to also capture loopback audio), maxDurationSec (auto-stop cap, default 3600; 0 = none), and events (log clicks, scroll, cursor, and key presses to <recording>.events.jsonl; keys = masked by default or shortcuts). Returns a session id and output path.
stop_recording	Stop a session by id. Sends ffmpeg a graceful quit so the file is finalized, not truncated. Returns the final path and duration.
list_sessions	List active and finished sessions.
get_session	Inspect a single session by id.
review_recording	Review player in clients that support MCP Apps: an inline player where a person scrubs the recording, drags trim handles, and draws redaction boxes, then exports a trimmed, redacted copy (one pipeline call). stop_recording results open it too. Elsewhere it returns the video's details.
player_frames	Preview JPEG frames for the review player; called by the player (app-only), not by agents.
read_events	Read a recording's input event log (clicks, scroll, cursor, key presses) on the video's clock. Opt in with start_recording events: true.
screenshot	Capture a single PNG of a target, and return it inline as an image the model can view.
list_audio_devices	List the DirectShow audio devices ffmpeg can see and flag a likely system-audio loopback device for start_recording.

Watch

Tool	Purpose
sample_frames	Extract frames from a video — at a fixed fps, at explicit timestamps, or only where the screen changed (mode: "scenes") — so the agent can view what happened. Returns the frame paths, with the first few frames inline as images.
contact_sheet	Tile timestamped frames into one image (evenly spaced, or at the scene changes) so the agent sees a whole recording in a single look; returned inline. poster: true writes one representative frame instead.
screen_diff	Compare two screenshots/frames: SSIM score, share changed, and bounding boxes of what changed, with the changes outlined in an inline image. Verify a UI change happened, and only where expected.
wait_for_change	Watch a target and return when it changes (a dialog opened) or settles (a build or page finished), instead of guessing a sleep. Reports elapsed time, changed regions, and the final state inline.
find_text	Read text on screen or in a frame with the OCR engine built into Windows (no install): every line and match with its bounding box. Locate a button by its label, check what the screen says, or find secrets (`regex: "sk-
get_media_info	ffprobe wrapper: duration, resolution, fps, codecs, container format, and size.

Minimal edit

Tool	Purpose
trim	Cut a sub-clip by start + (end or duration). Stream-copy for speed.
concat	Join two or more videos into one.
convert	Convert between mp4, gif, and webm.
export_gif	Animated GIF or WebP that fits a size budget (default: GitHub's 10 MB image limit) for PRs, issues, and READMEs. Two-stage palette for GIF; steps fps, width, and palette/quality down until it fits, and reports the settings used.

Edit surface

These tools re-encode (a filter rewrites pixels, so stream copy does not apply). They reuse the same draft/standard/high presets as capture.

Tool	Purpose
crop	Crop to a pixel rectangle (x, y, width, height). A rectangle that runs off the frame is rejected, not silently clamped.
scale	Resize to a width and/or height. One side keeps the aspect ratio; both set an exact size.
speed	Change playback speed by a factor (>1 faster, <1 slower). Audio is retempo'd when present.
overlay	Composite a logo, watermark, or picture-in-picture onto a base video at a position, optionally scaled and time-limited.
callout	Timed annotations: boxes, text labels, and arrows at any angle, each shown between two timestamps. Mark the bug, point at the button, caption a step.
compress	Re-encode smaller with a light/medium/heavy CRF ladder and an optional maxWidth that only downscales.
extract_audio	Write the audio track to its own file (mp3, aac, wav, or copy).
normalize_audio	Loudness to a delivery target (two-pass EBU R128 loudnorm): youtube −14 LUFS, podcast −16, broadcast −23, or any LUFS value. Video is copied; reports loudness before and after.
denoise	Reduce steady background noise (fan, hum, hiss) with afftdn, tuned to the file's measured noise floor. Video is copied.
transcribe	Speech to an SRT file, locally, with FFmpeg 8's whisper filter (needs a whisper.cpp model: pass model or set SCREENCAST_WHISPER_MODEL). Cues are renumbered and de-overlapped.
burn_subtitles	Burn an SRT/ASS into the video in the bundled font: clean (outlined line) or social (big bold text on a dark box, for muted autoplay).
clip	Extract one or more frame-accurate sub-segments to separate files. Unlike trim, it re-encodes so cuts land exactly on the given times.
cut_idle	Remove dead air: cut stretches where the screen is frozen and (when there is audio) silent, keeping a short pad at each edge. dryRun reports first; speech over a still screen is kept unless useAudio: false.

Redact

Tool	Purpose
redact_region	Cover declared rectangles in a video. style is box (default, a solid irreversible fill), blur, or pixelate; each region may be limited to a start/end window and expanded with pad.

Important

redact_region covers the regions you declare. It is not automatic secret detection, so it cannot find a secret you did not point it at. The default box style is a solid fill, which is irreversible; blur and pixelate are softer but can be partially recovered, so prefer box for real secrets. A region that falls outside the frame is rejected rather than silently doing nothing.

Produce

The production layer turns raw clips into a finished piece. Tools that combine clips auto-normalize each input to a common resolution, fps, and audio rate first, so heterogeneous sources compose cleanly.

Tool	Purpose
xfade_transition	Crossfade two videos into one with an xfade transition (fade, wipeleft, slideup, ...). Audio is crossfaded when both clips have a track.
assemble_highlights	Stitch two or more clips into one, with hard cuts (transition: "cut") or an xfade transition between each.
title_card	Generate a standalone title card (centered text on a solid background, with a silent track so it composes). Text uses a bundled font, so no system font is needed.
music_bed	Lay a music track under a video: looped/trimmed to length, faded in and out, leveled, and mixed with any existing audio (optionally ducked).
reframe	Re-aspect to 16:9, 9:16, 1:1, or 4:5 with pad (letterbox, no content lost) or crop (fill, trims overflow).
zoom	Smooth zoom-and-pan (Screen Studio style) into where the action is and back out. Give keyframes (rectangles by time), or let it plan them from the clicks in the input event log (start_recording events: true; highlightClicks rings each click) or from where the screen changes; dryRun returns the plan to adjust.
export_preset	Encode a platform-ready file (youtube, instagram_reel, tiktok, x, square, steam_trailer, vertical_reel): reframes, caps fps, and encodes H.264 at the platform bitrate with faststart. steam_trailer is 1080p H.264 High at a padded 5.5 Mbps CBR (above Steam's 5 Mbps floor) with 48 kHz audio at -14 LUFS; vertical_reel centres the footage over a blurred copy of itself with audio at -14 LUFS.
pipeline	Several edits in one ffmpeg process: steps of trim, crop, scale, speed, redact, callout, reframe, zoom (keyframes), ending optionally in export_preset or export_gif, each with its tool's options. One re-encode, no intermediate files, and a recipe you can save and re-run on the next recording; dryRun returns the planned command.

Targets

Every capture tool takes a single target string, so an agent never has to juggle quoting:

Target	Captures
full	The whole virtual desktop
monitor:<index>	One display; 0 is always primary
window:<title>	The on-screen rectangle a window occupies (case-insensitive exact title, else substring; topmost wins)
window:exe=<app.exe>	That app's topmost window, without relying on its title
window:hwnd=<handle>	One exact window by handle (hex 0x1A2B or decimal)
region:<x>,<y>,<w>,<h>	An absolute pixel rectangle

For window: targets, screenshot and start_recording both report matchedWindow, matchCount, matchKind (exact, substring, exe, or hwnd), and the captured region. When the title matched only as a substring, or several windows matched, the result carries a windowWarning listing the candidate titles, so a generic title like window:Code cannot quietly record a different window. Pass exactTitle: true to refuse the substring fallback entirely.

Output is written under SCREENCAST_HOME (default <homedir>/.screencast-mcp) into recordings/, frames/, screenshots/, and edits/. Any tool also accepts an explicit output path.

Edit and produce tools write to a <name>.partial.<ext> file next to the output and rename it into place only when ffmpeg succeeds, so a failed, timed-out, or cancelled job never leaves a truncated file at output. The job timeout scales with the media's length (at least 10 minutes, or 4x the duration); set SCREENCAST_JOB_TIMEOUT_MS to override it. Clients that send a progress token get notifications/progress updates while a job runs, and cancelling the request stops ffmpeg.

Configuration

ffmpeg and ffprobe must be on PATH, or pointed at with FFMPEG_PATH / FFPROBE_PATH; the server checks per call and returns an install hint if either is missing (macOS: brew install ffmpeg; Linux: apt install ffmpeg, for the non-capture tools).

Variable	Default	Purpose
SCREENCAST_HOME	<homedir>/.screencast-mcp	Where recordings, frames, screenshots, and edits are written
SCREENCAST_MAX_RECORDING_SEC	3600	Default recording cap (0 disables it)
SCREENCAST_JOB_TIMEOUT_MS	scales with length	Override the edit job timeout
SCREENCAST_WHISPER_MODEL	none	whisper.cpp model for transcribe
FFMPEG_PATH / FFPROBE_PATH	PATH lookup	Explicit ffmpeg / ffprobe binaries

Usage

Workflows: copy-paste recipes with the tool calls and real outputs are on the docs site: bug-repro clip for a PR, README demo GIF, agent UI verification loop, social clip, reviewing a long recording, zoom toward every click, and the whole edit in one call.

A typical watch loop — record, sample, look:

// 1. record a region for a few seconds
start_recording { "target": "region:0,0,1280,720", "quality": "draft" }
//    -> { "sessionId": "rec-…", "outputPath": "…/recordings/rec-….mp4" }

// 2. finalize the file
stop_recording { "sessionId": "rec-…" }
//    -> { "durationSec": 4.2, "finalizedGracefully": true }

// 3. look at it: the frames come back inline, so the model sees them directly
sample_frames { "input": "…/recordings/rec-….mp4", "timestamps": [0.5, 2, 3.5] }
//    -> { "frames": ["…/frames/…/frame_000_0.5s.png", …], "inlineImages": 3 }
//       + 3 image blocks the client shows to the model

Don't know where to look? sample_frames { "input": "…", "mode": "scenes" } returns only the frames where the screen actually changed (plus the opening frame), with their frameTimes. Screen recordings are mostly static, so this is usually far cheaper than a fixed rate. sceneThreshold (default 0.1) sets how big a change counts, and in fps mode dedupe: true drops near-identical frames.

screenshot { "target": "window:My App" } is the one-shot equivalent for a still, and also returns the image inline.

Inline images are downscaled JPEGs (maxImageWidth, default 1280) and capped per call (maxInlineImages, default 8, max 20); the full-resolution PNGs stay on disk. Pass returnImage: false / returnImages: false to get paths only.

sample_frames writes at most maxFrames frames per call (default 100, max 1000). In fps mode it probes the video first; if the rate would exceed the cap, it samples at a lower rate so the frames still span the whole video, and the result's capNote says what it did.

Prompts and resources

Beyond tools, the server offers prompts: ready-made workflows that clients such as Claude Code and VS Code show as slash commands.

Prompt	What it does
bug-repro-clip	Record, find the bug moment, check for secrets, trim, annotate, and export a GIF for an issue.
demo-gif	Record a feature walkthrough and export a GIF small enough for a README or PR.
verify-ui-change	Screenshot before, make the change, wait for the screen to settle, diff, and confirm the text.
review-recording	Summarize what happens in a recording, with timestamps.

It also offers resources, so a client can list and attach recordings without a filesystem tool: screencast://sessions (every session), screencast://sessions/{id} (one session), and screencast://sessions/{id}/poster (a JPEG preview frame). Clients are notified when a recording starts or stops.

Windows notes

• Multi-monitor offsets. gdigrab has no "capture monitor N" selector, so a monitor target captures the whole virtual desktop and crops to that display's pixel bounds (from System.Windows.Forms.Screen.AllScreens). monitor:1 grabs the second display at its real offset; monitor:0 is always primary.
• Window capture resolves the window to the on-screen rectangle it occupies and captures that, rather than the window's own surface — gdigrab's native title= grab returns a blank frame for GPU- or DirectComposition-composited windows (Chrome, Electron, UWP). Target it by title, or without relying on the title by window:exe=Code.exe (that app's topmost window) or window:hwnd=0x1A2B (one exact window); results report the matched title. The window must be visible, on top, and not minimized (a minimized window is rejected with a clear error), the capture includes anything drawn over that rectangle, and for start_recording the rectangle is fixed once at start. Use backend: "wgc" (below) to capture the window itself instead.
• Windows Graphics Capture (backend: "wgc", FFmpeg 8+). Captures a window's own surface by handle, even when other windows cover it. On screenshot and find_text it takes 1-2 s instead of ~0.2 s, so it is opt-in. On start_recording it records the window's client area while it is covered, moved, or in the background. gfxcapture only emits a frame when the window presents, so a small recorder process repaints one pixel of the window every 200 ms and repeats the latest frame at the requested fps; it stops on q like ffmpeg, so stop_recording and maxDurationSec work the same. The first frame takes a second or two, and start_recording returns once it is captured. No audio with wgc yet.
• Fullscreen-exclusive apps often produce black frames under gdigrab; run the source in borderless-windowed mode for reliable capture.
• System audio needs a loopback device. gdigrab is video-only, so start_recording with audio.source = system captures from a separate dshow input. Windows has no native loopback, so this needs a virtual-audio device (enable Stereo Mix, or install a driver such as screen-capture-recorder's virtual-audio-capturer or VB-CABLE). Run list_audio_devices to find it. Microphone capture is intentionally not supported.

Threat model

Warning

Screen capture can record anything on screen at the moment of capture — passwords, tokens, private messages, and other secrets. window: captures the screen rectangle a window occupies, so overlays, notifications, or another window drawn over it are captured too. Treat recordings, screenshots, and sampled frames as sensitive by default.

• Capture is always explicit. Nothing auto-fires; capture is gated behind an explicit tool call.
• Output stays local. Files are written to the local filesystem only — never uploaded, streamed, or transmitted anywhere.
• Public repo, private captures. The .gitignore blocks recordings, frames, screenshots, and common video/image output so test media cannot be committed by accident.
• Review before sharing. Sample frames or inspect a recording before handing a file to another tool or person, so you know what it contains. In clients that support MCP Apps, stop_recording and review_recording open an inline player where a person can scrub the whole recording and draw redaction boxes before anything leaves the machine. The player gets frames through the MCP connection; no local web server is started.
• Redaction covers what you declare. redact_region covers only the rectangles you specify. find_text can help find them: OCR with a query such as regex: "sk-|ghp_|api.?key" and redact: true returns ready-made rectangles. But OCR is best-effort; it can miss small or stylised text, so treat it as an aid, not a guarantee. Use the default box style for a solid irreversible fill, and still review the output before sharing.
• The input event log never records what you type. start_recording events: true hooks mouse and keyboard input for that recording only, in a helper that exits with it (or with the server). Keys are masked by default: the log says a key went down, not which. keys: "shortcuts" also names chords held with Ctrl, Alt, or Win (Ctrl+S); plain typing, Shift+letter, and AltGr characters stay masked, and no mode records text. Cursor positions and clicks still reveal what you pointed at, so treat .events.jsonl like the recording beside it.
• System audio is sensitive too. When audio.source = system, the recording captures everything playing on the machine (call audio, notifications, media). Treat audio-bearing recordings with the same care as the video.

Project structure

.
├── src/
│   ├── index.ts          # MCP server entry (stdio); registers every tool, reaps orphans
│   ├── prompts.ts        # MCP prompts (workflows as slash commands)
│   ├── resources.ts      # MCP resources (sessions, posters)
│   ├── wgcRecorder.ts    # recorder process for backend: "wgc"
│   ├── tools/            # one file per tool
│   ├── utils/            # pure builders and helpers (ffmpeg args, targets, sessions, ...)
│   └── __tests__/        # vitest: unit, ffmpeg integration, guarded local-capture harness
├── assets/               # bundled fonts and the review player (assets/ui)
├── docs/                 # GitHub Pages site (scripts/build-docs-pages.mjs writes the recipe pages)
├── scripts/              # Claude Desktop bundle (.mcpb) and docs page builders
├── mcp-tools.json        # canonical tool manifest (kept in sync with src/tools)
├── server.json           # MCP Registry listing (name matches package.json mcpName)
├── .github/workflows/    # CI, release, npm publish, Pages, ecosystem drift check
├── ROADMAP.md · CONTRIBUTING.md · SECURITY.md · LICENSE
└── package.json

Development

git clone https://github.com/TMHSDigital/screencast-mcp.git
cd screencast-mcp
npm install
npm run build      # tsc -> dist/
npm test           # vitest: unit tests, plus the ffmpeg integration suite when ffmpeg is on PATH
npm run dev        # tsx watch

To run your build from a client, point it at dist/index.js: "command": "node", "args": ["C:/path/to/screencast-mcp/dist/index.js"].

The integration suite (src/__tests__/integration) runs the real edit and produce builders through ffmpeg against lavfi-generated fixtures and checks the probed result (durations, dimensions, streams, loudness). It skips when ffmpeg is missing; set REQUIRE_FFMPEG=1 to make a missing ffmpeg fail instead, as CI's Linux job does.

The capture path can't be exercised on CI's headless Linux runners, so an end-to-end harness lives behind a flag and is skipped by default:

RUN_LOCAL_CAPTURE_TESTS=1 npm test   # Windows + ffmpeg + a real display

Contributing

Issues and pull requests are welcome — see CONTRIBUTING.md and the Code of Conduct. Security reports go through SECURITY.md.

License

Released under the CC-BY-NC-ND-4.0 license: free to use and share for non-commercial purposes, with attribution and without modification. For other uses, open an issue.
